Pendant Push Button Station

Step into the future with our Pendant Push Button Station, the ultimate solution for streamlined operational control across industrial environments. Our exclusive range includes COB 21-WD Pendant Push Button, XAC-2713 Pendant Push Button, XAC-4713 Pendant Push Button, XAC-6713 Pendant Push Button, and XAC-8713 Pendant Push Button, each designed to stand out as the best-in-class option for multitasking control. Featuring a robust construction for enhanced durability, a customizable design to meet specific industrial needs, superior ergonomic build for comfortable usage, high operational accuracy, and a weather-resistant body for long-term performance, these push button stations set the benchmark in trending industrial equipment. Ideal for applications in cranes, hoists, and other heavy machinery operations, it offers an exclusive combination of precision and user-friendly functionality. With over 5 years of experience in the domain, we ensure uncompromising quality, superlative performance, and reliability in every product we offer. Our supply ability spans the entire domestic market, covering all regions across India, ensuring timely availability for every customer. Choose the Pendant Push Button Station to elevate your operational efficiency with the best control solutions available today.

COB 21-WD Pendant Push Button

MOQ : 100 Pieces

  • Automation Grade
  • Manual
  • Circuit Type
  • SPST-NO/NC (Single Pole Single Throw - Normally Open/Closed)
  • Color
  • Yellow
  • Contact Resistance
  • 25 m
  • Current Rating
  • 10A
  • Finish Type
  • Glossy/Matte
  • Insulation Resistance
  • 100 M (at 500V DC)
  • Material
  • High-grade ABS Plastic Body
  • Max. Current
  • 10A
  • Max. Voltage
  • 500V AC
  • Mechanical Life
  • 1 Million Cycles
  • Mounting Type
  • Pendant/Hand-held
  • No Of Poles
  • 2 to 8 Poles (as per configuration)
  • Number of Module
  • 2 to 8 Modules (as per model)
  • Operating Temperature
  • -25C to +55C
  • Product Type
  • Pendant Push Button
  • Protection Level
  • IP65
  • Rated Voltage
  • 250V AC
  • Response Time
  • 20 ms
  • Size
  • Standard (approx. 270mm x 60mm x 55mm)
  • Stoke
  • 10 mm
  • Temperature Range
  • -25C to +55C
  • Weight
  • Approx. 350 grams

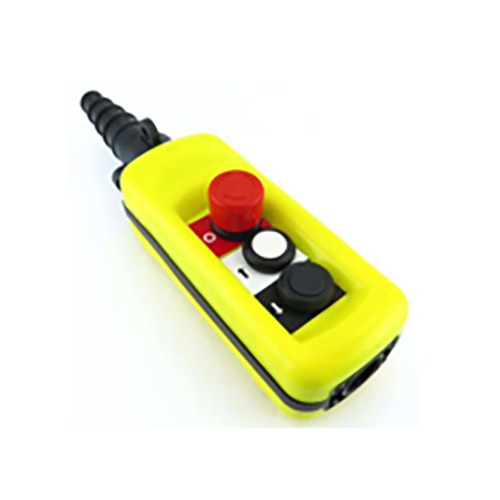

XAC-2713 Pendant Push Button

MOQ : 100 Pieces

  • Automation Grade
  • Manual
  • Circuit Type
  • Momentary
  • Color
  • Yellow & Black
  • Contact Resistance
  • 50 m
  • Current Rating
  • 10A
  • Finish Type
  • Matte finish
  • Insulation Resistance
  • 100 M at 500V DC
  • Material
  • High impact-resistant ABS plastic
  • Max. Current
  • 10A
  • Max. Voltage
  • 500V AC
  • Mechanical Life
  • 1,000,000 operations
  • Mounting Type
  • Pendant/Handheld
  • No Of Poles
  • 2 to 13 (as per configuration)
  • Number of Module
  • 13
  • Operating Temperature
  • -5C to +40C
  • Product Type
  • Pendant Push Button
  • Protection Level
  • IP65
  • Rated Voltage
  • 380V AC
  • Response Time
  • 20ms
  • Size
  • 290mm x 70mm x 67mm
  • Stoke
  • Approx. 8 mm
  • Temperature Range
  • -5C to +40C
  • Weight
  • Approx. 550g

XAC-4713 Pendant Push Button

MOQ : 100 Pieces

  • Automation Grade
  • Manual
  • Circuit Type
  • Single Speed
  • Color
  • Yellow/Black
  • Contact Resistance
  • 50 m
  • Current Rating
  • 10A
  • Finish Type
  • Glossy
  • Insulation Resistance
  • 100 M (500V DC)
  • Material
  • High Impact ABS Body
  • Max. Current
  • 10A
  • Max. Voltage
  • 500V AC
  • Mechanical Life
  • 1,000,000 cycles
  • Mounting Type
  • Handheld/Cable Mounted
  • No Of Poles
  • 1 N/O per button
  • Number of Module
  • 13
  • Operating Temperature
  • -25C to +70C
  • Product Type
  • Pendant Push Button
  • Protection Level
  • IP65
  • Rated Voltage
  • 500V AC
  • Response Time
  • 20 ms
  • Size
  • 315mm x 68mm x 68mm
  • Stoke
  • 2.5 mm
  • Temperature Range
  • -25C to +70C
  • Weight
  • Approx 500g

XAC-6713 Pendant Push Button

MOQ : 100 Pieces

  • Automation Grade
  • Manual
  • Circuit Type
  • Direct Operation
  • Color
  • Yellow Body with Black Buttons
  • Contact Resistance
  • 50m
  • Current Rating
  • 5A / 10A
  • Finish Type
  • Smooth Plastic Finish
  • Insulation Resistance
  • 100M (at 500V DC)
  • Material
  • High-strength Engineering Plastic
  • Max. Current
  • 10A
  • Max. Voltage
  • 500V AC
  • Mechanical Life
  • >1,000,000 operations
  • Mounting Type
  • Pendant (Suspended)
  • No Of Poles
  • 1 NO + 1 NC (per button)
  • Number of Module
  • 13
  • Operating Temperature
  • -25C to +70C
  • Product Type
  • Pendant Push Button
  • Protection Level
  • IP65
  • Rated Voltage
  • 250V AC
  • Response Time
  • 20 ms
  • Size
  • Approx. 400 x 65 x 60 mm
  • Stoke
  • Approx. 9 mm per button
  • Temperature Range
  • -25C to +70C
  • Weight
  • Approx. 0.75 kg

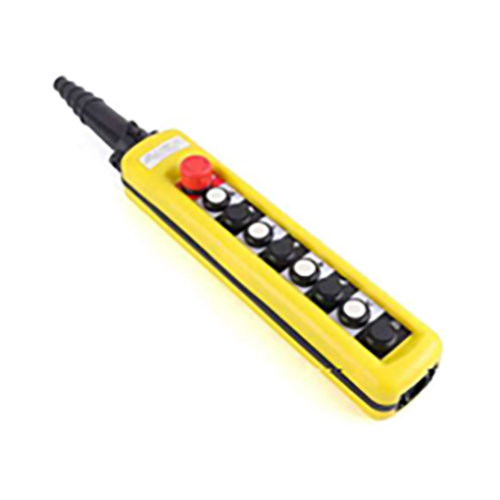

XAC-8713 Pendant Push Button

MOQ : 100 Pieces

  • Automation Grade
  • Manual
  • Circuit Type
  • 1NO+1NC
  • Color
  • Yellow/Black
  • Contact Resistance
  • 25m (initial)
  • Current Rating
  • 10A
  • Finish Type
  • Textured/Matte
  • Insulation Resistance
  • 100M (at 500VDC)
  • Material
  • High-impact ABS plastic
  • Max. Current
  • 10A
  • Max. Voltage
  • 500V AC/DC
  • Mechanical Life
  • 1,000,000 cycles
  • Mounting Type
  • Pendant/Hand Held
  • No Of Poles
  • 2
  • Number of Module
  • Single
  • Operating Temperature
  • -25C to +70C
  • Product Type
  • Pendant Push Button
  • Protection Level
  • IP65
  • Rated Voltage
  • 250V AC
  • Response Time
  • 20ms
  • Size
  • 270mm 70mm 65mm (LWH)
  • Stoke
  • 13 mm
  • Temperature Range
  • -25C to +70C
  • Weight
  • Approx. 380g
